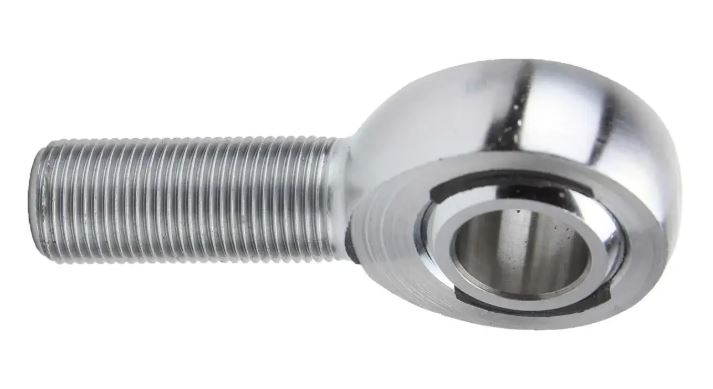

3/4" Rod End – Right Hand (16 TPI)
Heat-Treated Chromoly Heim Joint
This 3/4" right-hand Heim joint is built from heat-treated 4130 chromoly and designed for steering and suspension applications where strength and reliability matter. With a 28,000 lbs radial static load rating, it's more than capable of handling the abuse that comes with off-road use. The 52100 bearing steel ball is hard chrome plated and rides in a Teflon-injected nylon race for smooth, long-lasting articulation. It's the same joint we use in our own builds—proven on the trail and trusted in the shop.
- Thread Size: 3/4"-16 TPI
- Shank Size: 3/4"
- Bore Size: 3/4"
- Radial Static Load Rating: 28,000 lbs
- Bearing: 52100 heat-treated steel, hard chrome plated
- Housing: 4130 chromoly, heat-treated with hard chrome finish
- Race Material: Teflon-injected nylon
- Sold individually
